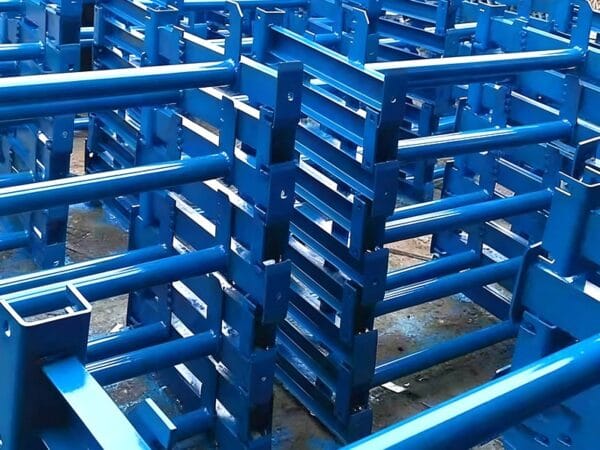

The idler bracket is a core component of the belt conveyor system, designed to support the idlers, prevent belt misalignment, and ensure stable operation of the conveying system.
H rack
The idler bracket is a core component of the belt conveyor system, designed to support the idlers, prevent belt misalignment, and ensure stable operation of the conveying system.
Structure and Composition
Idler brackets typically consist of the following components:
Deflectable Roller Bracket : Allows the idler rollers to deflect within a certain range to accommodate the dynamic variations of the conveyor belt.
Support : Connects the support bracket to the conveyor frame, providing stable support.
Pin销 : The key component for achieving stent angle adjustment.
Limit block : Control the deflection range of the idler rollers to prevent excessive deviation.
Fastener : Such as bolts and nuts, used to secure various components.
Some supports are also equipped with card-slot designs for quick roller replacement, enhancing maintenance efficiency.
Functions and Features
Support and Fixing Idlers
The idler bracket secures the idler via a support base and a pin, ensuring stable operation while allowing the idler to freely pivot within a certain angular range to accommodate the dynamic deflection of the conveyor belt.
Prevent conveyor belt misalignment
When the conveyor belt deviates, friction causes the idlers to self-oscillate; by adjusting the idler angles, the belt is guided back onto the correct path, thereby extending the service life of the equipment.
Reduce energy consumption and wear
The new-type support structure features a flexible design and low-drag materials, such as stainless steel and high-density polyethylene, to reduce energy consumption.
The self-aligning support features dustproof, waterproof, and shock-resistant properties, reducing equipment wear.
Easy to maintain
The cartridge design enables quick replacement of the idler rollers, reducing downtime.
Regularly adjusting the idler angle can prevent belt misalignment and ensure smooth system operation.
| Product Series | H-frame |
|---|---|
| Applications | The idler bracket is a core component of the belt conveyor system, designed to support the idlers, prevent belt misalignment, and ensure stable operation of the conveying system. |
| Customization | OEM / ODM, drawing-based production, factory-direct supply and engineering support |
| Source Product ID | Yilin original product 1 |
Product support for OEM & ODM
Drawing-based production, sample confirmation, and custom orders are supported from design to delivery.
Strong production capabilities
Conveyor belts, idlers, rollers, drums, supports, frames, and accessories can be manufactured for industrial projects.
Product quality assurance
Production inspection, packaging checks, and shipment coordination help keep product quality stable.
After-sales support
Our team supports product selection, technical communication, delivery tracking, and after-sales response.
Can I place a small batch order?
Yes. Small batch orders and sample confirmation can be arranged according to the product model and production schedule.
Do you have a pre-shipment inspection procedure?
Yes. Size, appearance, packaging, and key performance items can be checked before shipment.
Can samples be sent before bulk orders?
Yes. Samples can be arranged for testing or confirmation when the product specification is clear.
What information is needed for quotation?
Please send the product model, drawings, quantity, operating conditions, and expected delivery time.
Can you customize products from drawings?
Yes. OEM, ODM, and drawing-based customization are available for conveyor equipment and components.
What is the delivery time?
Delivery time depends on product model, quantity, and customization requirements. Standard products can usually be arranged faster.
Keywords: H-Frame
