Uses

Due to space constraints or the need to convey materials at steep inclines, this solution is designed to prevent material spillage and is suitable for conveying materials at angles ranging from 0° to 90°.

The following are the industries we serve:

• Aggregates and Mining • Cement • Steel/Metals • Energy/Thermal Power Generation • Fertilizers/Chemicals • Ports • Agriculture • Waste/Recycling

Quality Control

• Our large-scale, goliath-style bucket elevators are equipped with a rigorous quality control system that spans the entire production process: raw materials–semi-finished products–finished products. Each step in the semi-finished stage must be thoroughly tested before proceeding to the next operation; any nonconforming components are strictly prohibited from advancing to the subsequent stage.
• All finished products must be tested, and only those that pass inspection may leave the factory.

Side Technical Data

Model	Type	Height (Sh)	Side Wall – Base Width (Sw)	Pitch (P)	Weight (kg/m)
	Standard	40	30	25	0.58
		60	50	40	1.55
		80			1.82
		100			2.20
		120			2.65
	Textile-reinforced	120	75	63.2	3.20
		160			4.76
		200			6.45
		240			7.50
		250			6.37
		280			8.90
		300			9.33
	High definition	300	100	83	12.10
		400			18.72
		500			16.80

Partition Technical Data

Model	Type	Height (mm)	Bottom width (mm)
	C55	55	75
	C75	75	90
	C90	90	110
	C110	110	110
	T40	40	70
	T55	55	80
	T75	75	100
	T90	90	110
	T110	110	110
	T140	140	160
	T180	180	160
	TC75	75	85
	TC90	90	110
	TC110	110	110
	TC140	140	150
	TC180	180	150
	TC230	230	160
	TC280	280	160
	TCS230	230	105
	TCS280	280	105
	TCS360	360	200
	TCS470	470	200

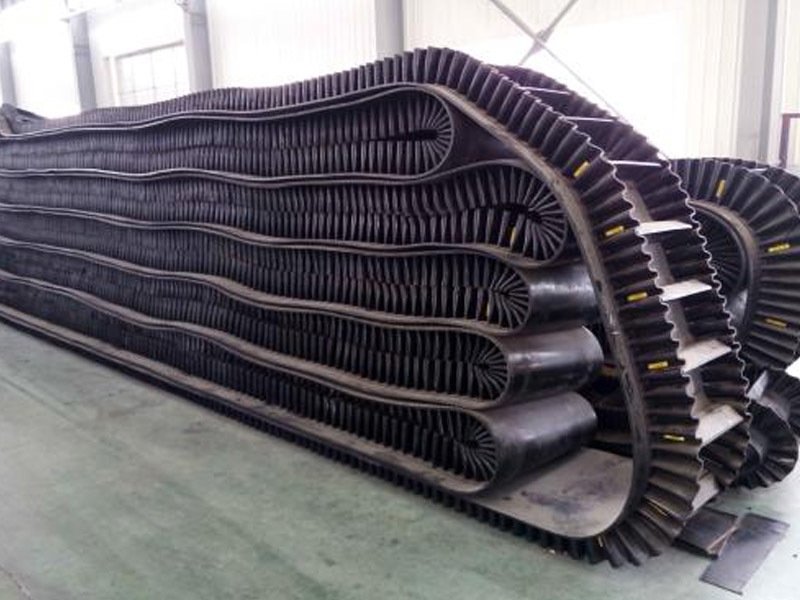

Data Sheet for Wave-Type Sidewall High-Inclination Elevating Conveyor Belt

Fabric Core Data

Quality/Grade Standard Performance Parameters for Cover Adhesive
