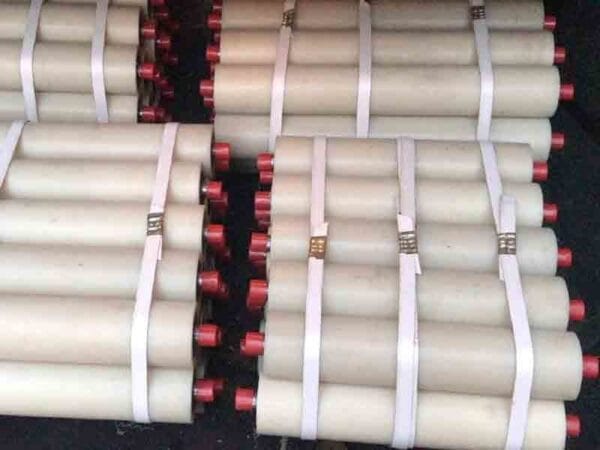

Nylon idler roller
Nylon idler roller
Excellent mechanical performance, lightweight, easy installation, and maintenance-free; stable operation and long service life.
Nylon idler roller
Our company specializes in manufacturing idler rollers that feature exceptional wear resistance, an extremely low coefficient of friction, and minimal belt abrasion. They also boast excellent self-lubricating properties, eliminating the need for lubrication and ensuring reliable operation even under harsh conditions without seizing. Additionally, they are antistatic, flame-retardant, aging-resistant, and highly resistant to corrosion by acids, alkalis, and organic solvents. These rollers can withstand repeated impacts and vibrations, and are suitable for use across a wide ambient temperature range of –40°C to 90°C.
It boasts excellent mechanical properties, lightweight construction, easy installation, and zero maintenance requirements, along with stable operation and a long service life. Our factory also manufactures a wide range of conveyor belt-related products, fully capable of meeting your needs.
Idler Parameters
| Product Name | Idler roller |
| Diameter | 65mm—219mm |
| Length | 190 mm–3500 mm |
| Color | Custom color based on customer requirements |
| bearing | Single-row and double-row deep-groove ball bearings, 2RZ & 2Z, with C3 clearance. |
| Seal | A fixed cover featuring a multi-stage labyrinth grease-retention internal seal and an external friction retaining-ring seal. The specialized design and specific labyrinth-seal configuration effectively prevent corrosion caused by contaminants such as water and air. |
| Piping | Q2353/Carbon Steel |
| Shaft material | 45# Steel/Cold-Drawn Round Bar |
| Manage thickness | 2.5mm—3mm—3.5mm—4mm—5mm |
| Lubrication | The grease is a lithium soap-based grease containing a rust inhibitor. |
| Welding | The end of the mixed-gas shielded arc weld is carefully finished. The precision-welded pipe ensures low vibration and noise from the support rollers. |
| Shaft diameter | 20mm—30mm—35mm—40mm |
| Standard | CEMA/JIS/DIN/ISO |
| Usage time | 30,000–50,000 hours |
| Product Series | Idler roller |
|---|---|
| Applications | Excellent mechanical performance, lightweight, easy installation, and maintenance-free; stable operation and long service life. |
| Customization | OEM / ODM, drawing-based production, factory-direct supply and engineering support |
| Source Product ID | Yilin original product 11 |
Product support for OEM & ODM
Drawing-based production, sample confirmation, and custom orders are supported from design to delivery.
Strong production capabilities
Conveyor belts, idlers, rollers, drums, supports, frames, and accessories can be manufactured for industrial projects.
Product quality assurance
Production inspection, packaging checks, and shipment coordination help keep product quality stable.
After-sales support
Our team supports product selection, technical communication, delivery tracking, and after-sales response.
Can I place a small batch order?
Yes. Small batch orders and sample confirmation can be arranged according to the product model and production schedule.
Do you have a pre-shipment inspection procedure?
Yes. Size, appearance, packaging, and key performance items can be checked before shipment.
Can samples be sent before bulk orders?
Yes. Samples can be arranged for testing or confirmation when the product specification is clear.
What information is needed for quotation?
Please send the product model, drawings, quantity, operating conditions, and expected delivery time.
Can you customize products from drawings?
Yes. OEM, ODM, and drawing-based customization are available for conveyor equipment and components.
What is the delivery time?
Delivery time depends on product model, quantity, and customization requirements. Standard products can usually be arranged faster.
Keywords: Idler Roller
